สถานที่กำเนิด:
กวางดง, จีน
ชื่อแบรนด์:
HILINK
ได้รับการรับรอง:
CE FCC Rohs
Model Number:
CXP-MPO121-SR10C
วิดีโอ

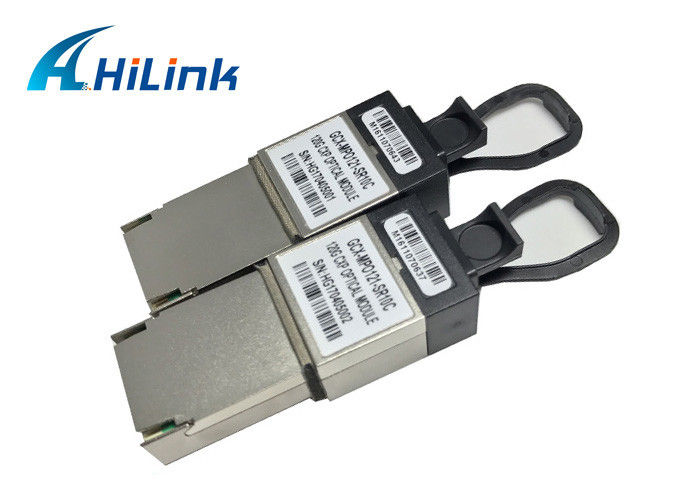

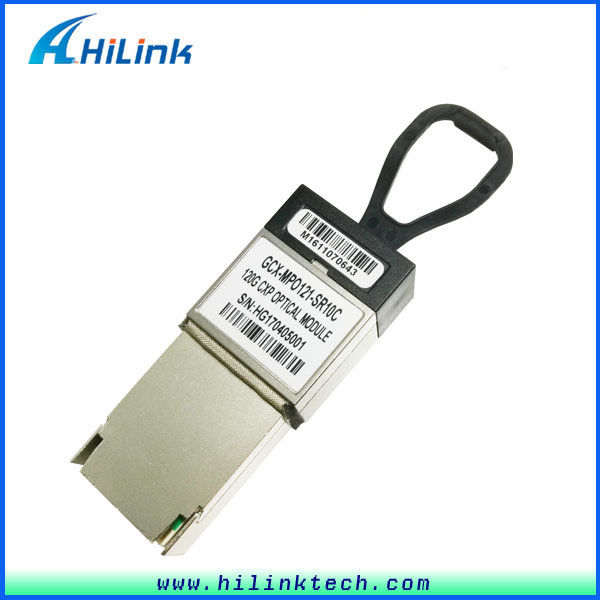

100G CXP MPO Optical Transceiver Module 100GBASE - SR10 12 channel
Features
12-channel full-duplex transceiver module
Hot Pluggable CXP footprint
Maximum link length of 300m on OM3 or 400m on OM4 Multimode Fiber (MMF)
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed CPPI electrical interface
Requires 3.3V power supply only
Low power dissipation: <4W
Reliable VCSEL array technology
Built-in digital diagnostic functions DDM
Commercial operating case temperature range: 0°C to 70°C
Single MPO connector receptacle
RoHS-6 Compliant (lead-free)
Applications
100GBASE-SR10 100G Ethernet
Multiple 1G/2G/4G/8G/10G Fibre Channel
Infiniband transmission at 12ch SDR, DDR and QDR
Switches, Routers
Data Centers
Other 120G Interconnect Requirement
Product Details
| Form factor | CXP | Part number | CXP-MPO121-SR10C |
| Product Description | 120G, CXP, MMF | Data Rate | 12 x 10.3Gbps |
| Ave Tx Power(Each lane) | -7.6 ~ +2.6dBm | Ave Rx Sens/Each lane | -9.5 ~+2.4dBm |
| Distance | 300m(om3) 350m(om4) | Wavelength | 850nm |
| Connector | MPO | Transmitter | VCSEL array |
| Receiver | PIN array | Power dissipation | <4.5w |
| Temperature | 0°C to 70°C | DDM | Yes |
Description
Hilink’s CXP-MPO121-SR10C CXP transceiver modules is a high performance, low power consumption, long reach interconnect solution supporting 100G Ethernet.
Infiniband QDR,DDR,SDR,1G/2G/4G/8G/10G fiber channel and PCIe.
It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface.
Hilink’s CXP transceiver modulesis an assembly of 12 full-duplexlanes, where each lane is capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 120Gb/s.
Notes:
1. Transmitter consists of 12 lasers operating at a maximum rate of 10.5Gb/s each.
2. Even if TDP is <0.9dB, the OMA min must exceed this value.
3. RIN is scaled by 10*log (10/4) to maintain SNR outside of transmitter.
4. The Receiver consists of 12 photodetectors operating at a maximum rate of 10.5Gb/s each.
